Ever wondered how a single HMI click controls a heavy industrial pump?

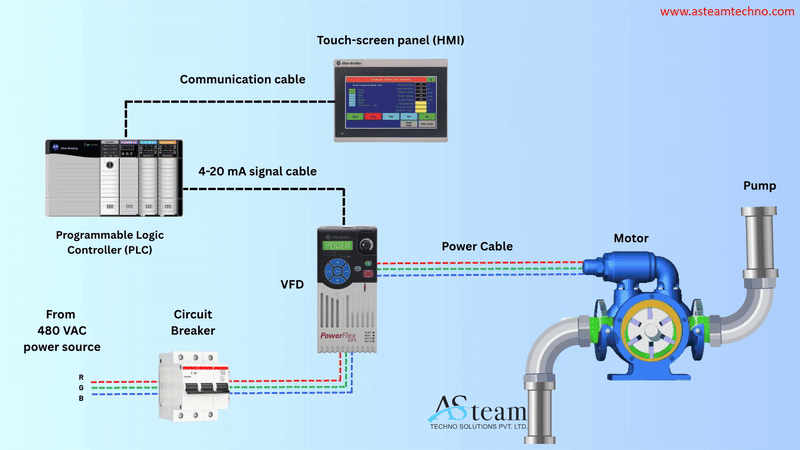

This GIF shows a real-world setup used in industries like water treatment, pharma, and HVAC. 🔹 HMI (Touchscreen Panel) – Sends operator commands 🔹 PLC – Acts as the brain, processing inputs and making decisions 🔹 VFD – Controls the motor speed for energy efficiency 🔹 Motor & Pump – Perform the mechanical task of fluid movement 🔌 Power Cables – Supply energy from the source via circuit protection 📶 4–20 mA Signal Cable – The most overlooked yet critical piece, quietly delivering analog signals like flow or pressure — helping the PLC make real-time decisions
