Progressive Stamping Dies & Die Components: Function & Design

Learn how progressive stamping dies and die components improve manufacturing accuracy, speed, and efficiency. Explore their functions, design process, key parts, and advantages in modern metal stamping applications.

The use of progressive stamping dies is very important in facilitating large volume, repeatable and low-cost production. With the growing need for complex tooling geometries with tight tolerances, the significance of properly engineered tooling cannot be overstated. The design and production of progressive stamping dies, and other progressive die components at Eigen Engineering is administered with precision, durability and efficient operation in the progressive stamping die and other related progressive die components.

Understanding Stamping Dies

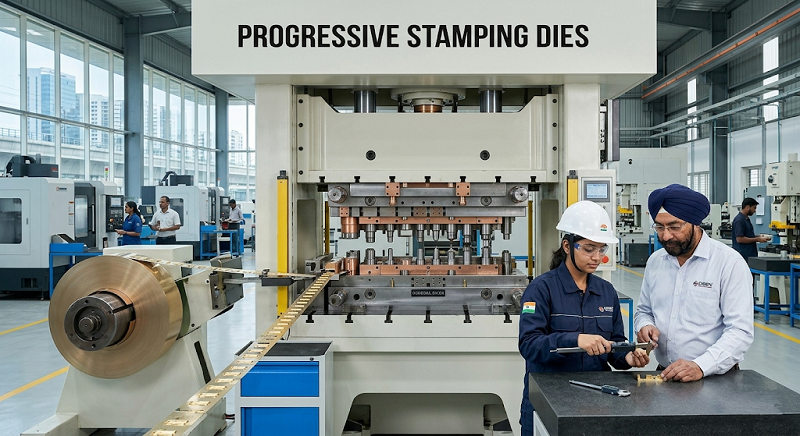

A progressive stamping die is an advanced stamping tool technology used in stamping processes of sheet metal, where a continuous strip of metal is passed through multiple stations in one die. At every station, a particular operation (cutting, bending, punching, and forming) is carried out. The metal strip moves with every stroke of the press, gradually forming until a complete part is made.

In contrast to single-operation dies, progressive stamping dies allow many processes to be performed and at various stages simultaneously. This not only increases production but also provides uniformity when large volumes of production are taken into consideration. Such dies are especially sought after in automotive, electronic, and consumer goods industries, where repeatability and speed are vital.

Core Functions of Progressive Stamping Dies

The actual role of progressive stamping dies is to convert flat sheet metal into specific, easily applicable parts using a set of controlled processes. These are often cold-forming processes, that is, they happen without any external heat being applied, although some thermal effects may take place as a result of friction during the processing.

Key functions include:

1. Cutting and Blanking: Early shaping of the workable blanks of the metal strip.
2. Piercing and Punching: Creating holes or cut-outs as per design requirements.
3. Forming and Bending: Process of bending the metal into the required geometries.
4. Part Separation: Possible final removal of the completed component from the strip.

Progressive stamping dies are used through a series of steps in which high production through minimal material wastage is feasible, with few human actions required.

Classification of Stamping Dies

Dies that stamp are broadly categorised depending on the number of operations they undergo as well as the way the workpiece moves through the tooling. The main categories include the following:

1. Simple Die: This type of die is intended to perform one operation (either cutting or forming) at one stage each stroke. Applicable to low-volume, simple applications.
2. Compound Die: It is a cutting operation that is performed on many cutting operations at the same station with a single stroke. Such a setup can tremendously increase the output of production by manufacturing a complete component with a single cycle.
3. Transfer Die: This is like the progressive die, with one difference that blanking is done at the very beginning of the operation. The blank is then provided through a mechanistic transfer procedure between successive stations.
4. Combination Die: This type of die combines the capability of a cutting die with the ability to perform forming operations all in the same station and in the same stroke, which provides a compact but multifunctional solution.
5. Multiple Dies: This consists of two or more dies laid in parallel in order to maximise throughput, and actually multiply the number of components produced per stroke.

Progressive Stamping Dies (Design Philosophy & Operation)

Progressive stamping die is the most advanced and most widely used solution to high-volume precision manufacturing.

1. In a progressive stamping die, the strip of sheet metal is fed through a progressive sequence of discrete stations.
2. Each press stroke puts into effect a certain cutting/forming operation at each station.
3. The component is shaped gradually, station by station, to be finally separated from the carrier strip at the last stage.

The rate of progressive stamping dies is similar to that of the compound dies, and they can also produce a finished part with each stroke. One of the benefits, however, of the progressive configuration is the relative simplicity of design at each individual station level: as each individual station only deals with one or a limited number of operations, tooling geometry and maintainability are relatively simple. State-of-the-art progressive stamping dies can achieve high rates of up to 1,500 strokes per minute, guaranteeing an exceptionally good fit in large production runs.

To achieve dimensional consistency between high-volume production cycles at Eigen Engineering, progressive stamping dies are designed to meet demanding tolerances to achieve dimensional consistency. Each progressive stamping die design is specific to the geometry of the component being stamped, the specification of stainless steel or other required metal, and the required volume production of the stamped component.

Key Progressive Die Components & Their Functions

The structural and functional integrity of a progressive stamping die is dependent on the quality and precision of its constituent progressive die components.

Each component has a specific mandate in helping to achieve a reliable, repeatable performance:

1. Die Block: This is the main female part, to which the punch goes down. It is made of tool steel or carbide and outlines the cutout shape of the workpiece.
2. Punch & Punch Plate: This is the male part that carries out the cutting or forming operation. The punch plate holds the punches in place and folds with the die block.
3. Stripper Plate: Ejects the strip of sheet metal from the punch after each strike so that the sheet metal does not get picked up by the punch during the return stroke.
4. Pilot Pins: While registering the strip at the respective stations, it is imperative that you engage the pre-pierced holes of the strip, hence accurately registering the strip at the respective stations.
5. Die Set (Upper and Lower Shoe): The structural housing enclosed with all the progressive die elements so that they align. Guides and bushings in the die set permit positive positional accuracy with repeatability.
6. Stock Guides and Stops: regulate the direction of the feed and progress of the strip, and maintain a constant pitch between workstations and dimensional accuracy of the final part.

The accuracy in the design, production and maintenance of these progressive die components is directly proportional to the quality of the resulting components. At Eigen Engineering, every progressive stamping die must be thoroughly inspected to ensure that all component tolerances are in spec prior to production issue.

Design Considerations for Progressive Stamping Dies

To design a progressive stamping die, one should have a thorough knowledge of the behaviour of materials, tooling dynamics, and production needs. At Eigen Engineering, there are a few things that are taken into consideration at the stage of design:

1. Material Selection

The design largely depends on the type and thickness of the sheet metal used. More durable metals can demand specialised finishes or components made of carbide-based progressive dies to increase their longevity.

2. Strip Layout Optimisation

Strip layout design with high efficiency reduces the amount of material wasted and ensures that all the stations pass smoothly. Correct spacing and nesting are essential in maximising yield.

3. Tolerance and Precision

Critical applications require close tolerances. This is because the construction of a progressive stamping die should take note of the dimensional accuracy in each step of the process.

4. Load Distribution

Even distribution of press force on press stations eliminates wear appearing prematurely and maximises the life cycle of the tool. It requires a balanced design to achieve uniformity.

5. Maintenance and Accessibility

A properly designed progressive die enables easy maintenance of the unit and easy replacement, thereby minimising downtime and enhancing the overall productivity.

Advantages of Progressive Stamping Dies

Adopting a progressive stamping die has a number of operational and economic advantages:

1. Exceptionally High Production Efficiency: There are several processes to be completed within one cycle, making the output of the product remarkably high.
2. Consistency and Precision: With automated processes, all components have the same quality.
3. Cost- Effectiveness: A decrease in labour and material wastages decreases the total production costs.
4. Scalability: The ideal one is the large scale production with minimum variation.
5. Tool Life: The life of a tool increases when it is used properly and maintained in optimal conditions.

Progressive stamping dies are at the heart of modern metal forming processes, allowing manufacturers to enjoy high-speed and high-precision production. When effectively planned and powerful progressive die elements are integrated, there is assurance of reliability, precision and efficiency in the long-term.

A culture of excellence, guaranteed by designing and implementing manufacturing of progressive stamping dies at Eigen Engineering, ensures that the clients receive the tooling solutions that suit the specific needs of their production process. Centring on innovation, material quality, and engineering precision, Eigen Engineering has remained to assist industries to sustain high standards of manufacturing.
