Pitched Blade Turbine: Versatile Mixing with Combined Axial & Radial Flow

Among the many agitator designs used in industrial mixing, the pitched blade turbine stands out for its versatility. By angling its blades rather than mounting them flat or vertically, this design produces a hybrid flow pattern — part axial, part radial — making it one of the most widely applied agitator types across chemical, pharmaceutical, and process industries.

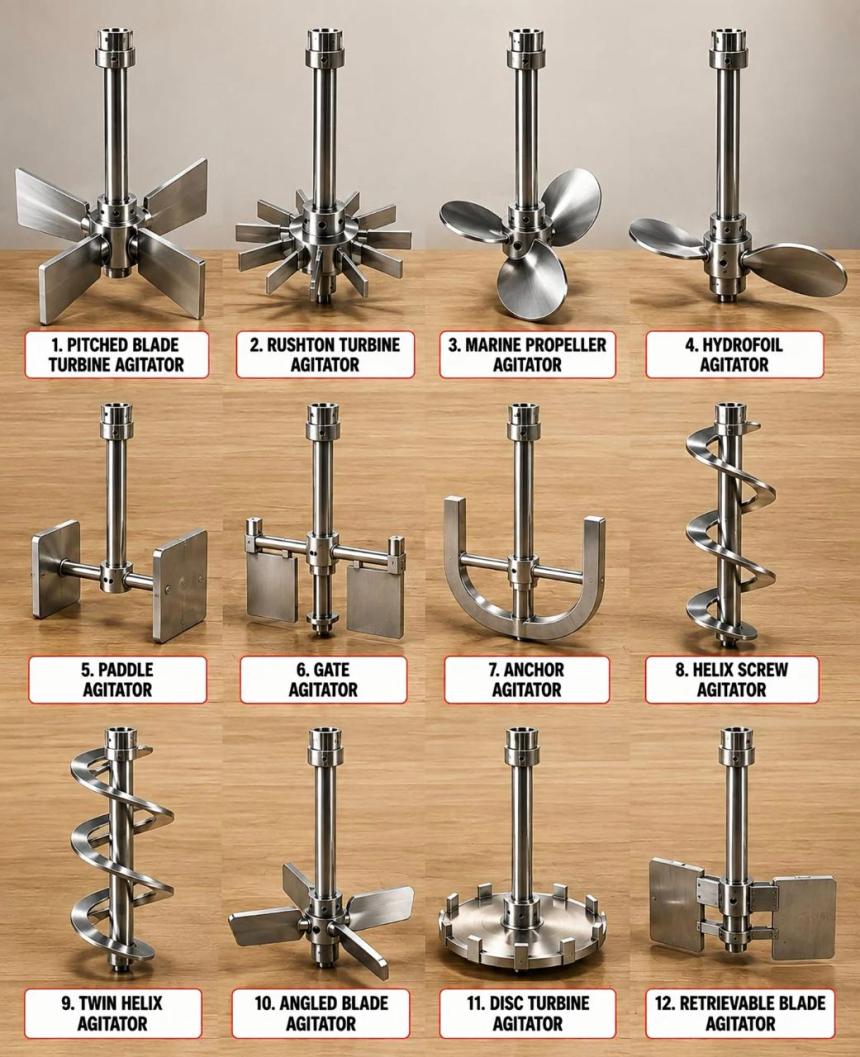

What Is a Pitched Blade Turbine?

A pitched blade turbine is an impeller with blades set at an angle (commonly 30°, 45°, or 60°) relative to the horizontal plane, mounted on a rotating shaft. This angled configuration allows the impeller to push fluid both downward (axial) and outward (radial) simultaneously, resulting in a combined flow pattern that promotes thorough vertical and horizontal mixing throughout the vessel.

This makes the pitched blade turbine a middle ground between pure axial-flow propellers and pure radial-flow flat-blade turbines.

How a Pitched Blade Turbine Works

As the angled blades rotate:

1. Fluid is driven downward along the shaft axis, then redirected outward and upward along the tank walls
2. This creates a continuous top-to-bottom, wall-to-center circulation loop
3. The combined flow pattern reduces stratification and prevents settling of solids
4. Shear levels are moderate — higher than propellers, but generally gentler than flat-blade turbines

This balance of flow and shear is why pitched blade turbine are so widely specified across varied process requirements.

Common Blade Angles and Their Effects

1. 30° pitch — strong axial flow, closer in behavior to a propeller; good for blending and solids suspension
2. 45° pitch — the most common configuration, balancing axial flow with moderate radial mixing
3. 60° pitch — more radial flow and shear, useful when some dispersion is needed alongside bulk circulation

Selecting the correct blade angle allows engineers to fine-tune the mixing profile for the specific process without switching to an entirely different impeller type.

Key Advantages of a Pitched Blade Turbine

1. Versatile flow pattern — suitable for blending, solids suspension, and heat transfer enhancement in a single design
2. Moderate power consumption — more efficient than high-shear turbines for general blending duties
3. Effective solids suspension — the downward axial component helps keep particles from settling
4. Scalable design — works well across a range of tank sizes and viscosities
5. Customizable pitch angle — tailored to the exact process requirement

Industrial Applications of Pitched Blade Turbines

1. Chemical & Petrochemical Industries — blending, solids suspension, and reaction mixing
2. Paints, Coatings & Dyes — pigment suspension and consistent viscosity control
3. Food & Beverage Processing — blending suspensions and preventing ingredient settling
4. Pharmaceutical Production — suspension mixing and controlled blending of formulations
5. Wastewater Treatment — solids suspension in clarifiers and mixing tanks

Pitched Blade Turbine vs. Flat Blade Turbine vs. Propeller

1. Pitched blade turbine — balanced axial + radial flow; ideal for solids suspension and general blending
2. Flat blade turbine — primarily radial flow and high shear; best for dispersion and gas-liquid contacting
3. Propeller agitator — primarily axial flow; best for fast, low-viscosity bulk blending

For processes needing both circulation and suspension without excessive shear, the pitched blade turbine is often the most practical choice.

Custom Pitched Blade Turbines from Anala Pumps

Anala Pumps manufactures and exports heavy-duty agitators, including pitched blade turbine configurations engineered for chemicals, slurries, and viscous fluids. Our agitators offer:

1. Energy-efficient mixing technology
2. Available sizes, speeds, and blade pitch angles
3. Custom-engineered designs for specific applications
4. ISO-certified manufacturing and a strong global export presence in the chemical industry

Explore our full industrial agitator range or contact our engineering team to design a pitched blade turbine for your process.
