How to Improve the Life of Slide Gate Plates: A Comprehensive Technical Guide

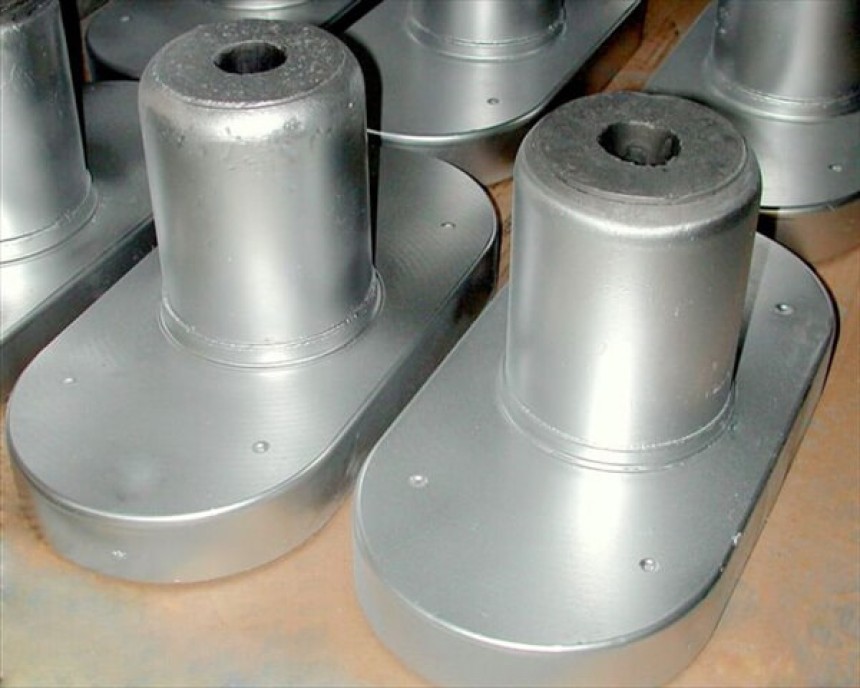

Slide gate plates are key functional refractories installed in the ladle or tundish slide gate system to control steel flow during casting.

Introduction

Slide gate plates are key functional refractories installed in the ladle or tundish slide gate system to control steel flow during casting. As flow-control components, they are subjected to extreme thermal, chemical, and mechanical stresses: high steel temperatures, erosive flow, oxidation, slag attack, mechanical abrasion, and frequent opening/closing cycles. Their lifespan directly affects casting sequence length, ladle turnaround time, production cost, and operational safety.

Improving slide gate plate life is therefore a critical objective for steel plants as it increases sequence casting lengths, reduces refractory consumption, and enhances steel cleanliness. Achieving long service life requires a combined approach involving raw material selection, plate design, production technology, preheating practices, operational discipline, and metallurgy control. This article provides a detailed and practical guide on how to extend slide gate plate life in modern steelmaking operations.

1. Use High-Quality Raw Materials

The quality and selection of raw materials have the strongest influence on plate performance.

1.1 High-Purity Alumina

Al₂O₃ content above 85–95% is essential for:

• High refractoriness
• Resistance to steel and slag erosion
• Dimensional stability at high temperature

Low impurities reduce unwanted reactions with molten steel and inclusions.

1.2 Carbon and Antioxidants

Carbon enhances oxidation resistance and thermal shock resistance. In high-quality plates:

• Carbon content ranges from 5–20% depending on application.
• Antioxidants such as SiC, Al metal, Si metal, Mg metal, and BN improve stability.

Proper antioxidant blend minimizes oxidation, which is one of the main failure modes.

1.3 Special Additives

To further extend life:

• Zirconia (ZrO₂) improves chemical resistance and wear resistance.
• Spinel-forming materials (MgO·Al₂O₃) help resist corrosion from Ca-treated steels.
• BN coatings are often applied to reduce friction and enhance smooth plate movement.

The raw material design must match steel grade, casting temperature, and sequence length.

2. Use Advanced Manufacturing Technology

Manufacturing processes determine plate density, strength, porosity, and overall durability.

2.1 Isostatic Pressing

Isostatic pressing creates higher density and more uniform microstructure than conventional pressing. Benefits include:

• Lower porosity
• Higher thermal shock resistance
• Improved erosion resistance
• More consistent material performance

Isostatic plates normally last significantly longer, especially in continuous casting applications.

2.2 Optimized Firing Temperature

High-temperature firing produces:

• Strong ceramic bonds
• Lower microcracks
• Higher mechanical strength

Underfired plates degrade quickly because of insufficient bond formation.

2.3 Strict Quality Control

Key tests include:

• Apparent porosity
• Bulk density
• Cold crushing strength
• Flexural strength
• Oxidation resistance
• Thermal shock resistance

Consistent production is essential to achieving predictable life cycles.

3. Improve Plate and System Design

Beyond materials, engineering design of plates plays a major role.

3.1 Proper Plate Thickness

Thicker plates withstand longer sequences but must fit system specifications. Overly thin plates fail easily; overly thick plates may cause improper movement or temperature gradients.

3.2 Larger Bore and Optimized Geometry

Optimizing bore diameter, shape, and taper reduces:

• Steel velocity
• Turbulence
• Erosion at the plate’s critical hot face

Some designs use a conical bore to stabilize flow and minimize wear.

3.3 Better Alignment and Contact Surface

Improper alignment between upper and lower plates causes:

• Uneven wear
• Groove formation
• Steel leakage risks

Precision machining of contact surfaces is essential to long service life.

4. Proper Preheating Practices

Preheating slide gate plates is one of the simplest yet most effective ways to extend their life.

4.1 Benefits of Proper Preheating

• Reduces thermal shock during first steel impact
• Drives out residual moisture
• Minimizes cracking and microfractures
• Enhances oxidation resistance

4.2 Best Preheating Practices

• Minimum 800–1000°C for ladle slide gates
• Slow and uniform heating
• Avoid direct flame impact on plate surfaces
• Maintain proper soak time before tapping

Extreme temperature jumps shorten plate life dramatically.

5. Metallurgical Factors That Affect Plate Life

Operational metallurgy heavily influences erosion and oxidation rates.

5.1 Steel Temperature

Higher temperatures increase:

• Erosion rates
• Chemical attack
• Thermal shock risk

Optimizing tapping and casting temperature directly contributes to longer plate life.

5.2 Calcium Treatment Practice

Calcium treatment modifies inclusions but the resulting slag reacts differently with plates. Excessive Ca addition may:

• Accelerate erosion
• Increase chemical penetration

Coordinating Ca addition strategies with refractory design is essential.

5.3 Slag Composition

High FeO and MnO slags are aggressive to slide gate plate materials. Lowering oxidizing slag components helps prevent chemical wear.

6. Operational Practices and Maintenance

Even the best materials fail early if operational practices are poor.

6.1 Smooth Opening and Closing

Abrupt movement or forceful operation causes:

• Mechanical abrasion
• Misalignment
• Premature wear

A well-maintained slide gate mechanism ensures smooth movement.

6.2 Correct Torque Settings

Proper tightening torque:

• Prevents plate deformation
• Ensures uniform contact pressure
• Reduces risk of leakage

Torque must be set according to equipment manufacturer specifications.

6.3 Cleanliness During Assembly

Before installation:

• Remove dust, moisture, or foreign materials
• Ensure surface flatness
• Apply BN or graphite lubrication as required

Even small debris can compromise plate contact and reduce service life.

7. Using Compatible Refractory Components

Slide gate plate life is also influenced by associated refractories, such as:

• Nozzles (upper/lower)
• Ladle well blocks
• Collector nozzles
• Ladle shrouds

Incompatible combinations may cause:

• Mismatch in expansion rates
• Thermal stress concentration
• Different erosion patterns

Using a fully matched system from the same manufacturer often yields longer life.

8. Regular Inspection & Failure Analysis

To continuously improve slide gate plate life, plants must analyze failure modes:

Common Failure Mechanisms

1. Thermal shock cracking
2. Chemical erosion from slag/steel
3. Oxidation-induced damage
4. Mechanical abrasion
5. Misalignment wear
6. Grooving or channel formation

By identifying root causes, engineers can adjust:

• Materials
• Designs
• Operating practices
• Preheating procedures

Continuous improvement is the key to reaching optimal service life.

9. Selecting a Reliable Slide Gate Plate Supplier

A long-lasting slide gate system requires a stable supplier who provides:

• High-purity materials
• Strong R&D capability
• Isostatic pressing technology
• Consistent quality control
• Technical support at the steel plant
• Ongoing improvement programs

Supplier partnership is essential; it is not just procurement but co-engineering cooperation.

Conclusion

Improving the life of slide gate plates requires a holistic approach that integrates material science, manufacturing technology, operational practices, and metallurgical control. Raw material purity, isostatic pressing, optimized design, proper preheating, stable casting conditions, and strict operational discipline all contribute to longer life.

By coordinating refractory suppliers, steelmaking engineers, and maintenance teams, steel plants can significantly extend plate service life, reduce refractory consumption, enhance casting stability, and improve overall productivity. Long-term success comes from continuous monitoring, failure analysis, and refinement of both process and materials.

Before Enquiry Some Questions You Should Know About Ladle Shroud - Henan Yangyu Refractories Co.,Ltd

The Iso Refractory Trial Report Compared With Vesuvius

The drawing regarding kinds of slide gate plate

Slide Gate Plate Price Guide 2025: Complete Pricing Analysis and Buying Tips

Complete Guide to Submerged Entry Nozzle (SEN) in Steel Making

What Is A Ladle Shroud And Its Function - Henan Yangyu Refractories Co.,Ltd

How To Improve The Lifespan Of Slide Gate Plates

The Reason Of Sub Entry Nozzle Clogging And How To Slove It

Why The Tundish Stopper Cracks And How To Improve It

How To Avoid The Sub Entry Nozzle(SEN) Clogging

The Problem In The Application Of Monoblock Stopper Rods

https://youtu.be/EmNn8E3hRdo

https://youtu.be/AJ3Dt9R2Rh8

https://youtu.be/ctppROYzPuc

Facebook
