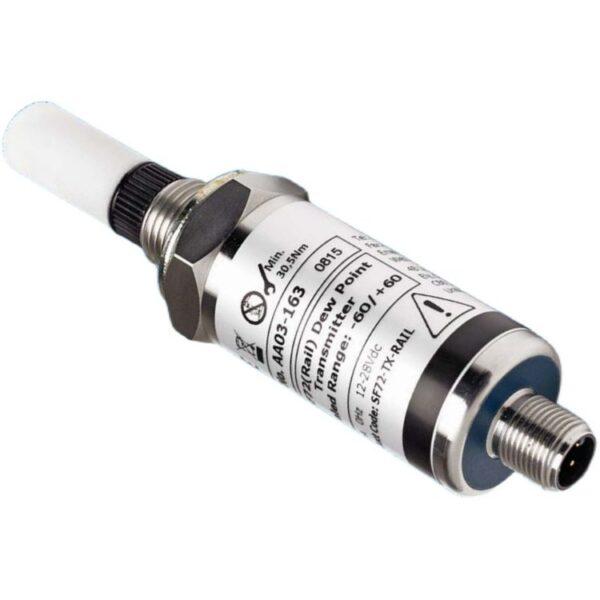

Dewpoint Sensor: A Practical Guide to Moisture Monitoring with ShawMeter

A dewpoint sensor is a measurement device used to determine the dew point of a gas. The dew point represents the temperature at which the gas becomes saturated with water vapour and condensation can begin.

Moisture control is an important part of many industrial processes where excessive water vapour can affect equipment, product quality, and system performance. A dewpoint sensor provides a practical way to monitor moisture conditions by detecting the temperature at which condensation begins to form. ShawMeter offers moisture measurement solutions designed for applications where dependable dew point monitoring is required.

What Is a Dewpoint Sensor?

A dewpoint sensor is a measurement device used to determine the dew point of a gas. The dew point represents the temperature at which the gas becomes saturated with water vapour and condensation can begin.

By monitoring dew point, engineers can assess the moisture content of compressed air, industrial gases, and other process environments. The sensor can be integrated into measurement equipment or monitoring systems depending on the application.

Why Is Dew Point Monitoring Important?

Excess moisture can create several challenges in industrial environments. Water vapour may contribute to corrosion, condensation, contamination, or reduced efficiency of equipment.

Monitoring dew point helps operators understand whether moisture levels remain within the required operating range. Regular measurements can also provide useful information when investigating changes in system performance.

For processes that depend on dry air or gases, reliable moisture monitoring can therefore be an important part of quality control and maintenance.

How Does a Dewpoint Sensor Work?

The exact operating principle depends on the sensor technology. Different dew point instruments use different methods to detect moisture conditions.

The sensor measures characteristics of the gas and converts the information into a dew point reading. Modern instruments may provide digital outputs or communicate measurements to monitoring and control systems.

When selecting a sensor, users should consider the measurement technology, required range, accuracy, pressure, temperature, and gas composition of the application.

Applications of Dew Point Sensors

Dew point sensors can be used across many industrial and technical applications. Common areas include compressed-air systems, industrial gas production, manufacturing, power generation, laboratories, and process monitoring.

In compressed-air systems, monitoring moisture can help verify dryer performance and identify changes in air quality.

For industrial gases, dew point measurement can help confirm that moisture levels remain within specified process requirements.

Dew Point Monitoring in Compressed Air

Compressed air is widely used in manufacturing and automation. If moisture is not properly controlled, condensation can occur within pipes and equipment.

A suitable sensor can continuously or periodically monitor dew point conditions, depending on the system configuration.

Monitoring changes in readings can help maintenance teams investigate possible issues with dryers, filters, pipelines, or other components.

Industrial Gas Applications

Many industrial gases need controlled moisture levels to maintain process quality. Excessive moisture may interfere with sensitive processes or contribute to equipment problems.

A properly selected sensor can provide useful information about gas dryness and help operators maintain appropriate conditions.

Before installation, engineers should evaluate pressure, temperature, gas composition, flow conditions, and the required measurement range.

Important Features to Consider

Choosing the right sensor requires more than looking at the measurement range. Several factors can influence performance.

Measurement Range

The sensor should be capable of measuring the expected dew point range of the application. A suitable range helps ensure that the readings remain useful under normal operating conditions.

Accuracy

Accuracy is important when processes have strict moisture specifications. Always review the manufacturer's published accuracy and understand the conditions under which the specification applies.

Response Time

A fast response can be valuable when moisture conditions change quickly or when the sensor is used for troubleshooting and process monitoring.

Pressure and Temperature

Operating pressure and temperature can affect measurement performance. The sensor should therefore be selected according to the actual conditions where it will be installed.

Installation and Sampling

Correct installation is essential for obtaining dependable measurements. Poor connections, leaks, unsuitable tubing, contamination, or incorrect sampling conditions can affect readings.

For applications using a sampling system, the sample line should be appropriate for moisture measurement and installed carefully to minimize contamination and external moisture influence.

Following the manufacturer's installation recommendations can help improve measurement consistency.

Calibration and Maintenance

Regular calibration is an important part of maintaining measurement reliability. The appropriate calibration interval depends on the sensor, operating environment, application, and manufacturer's recommendations.

Routine inspection can also help identify damaged connections, contamination, or other issues that may affect readings.

Keeping records of calibration and measurements can provide useful information for quality control and maintenance programs.

Dewpoint Sensor vs Portable Meter

A sensor is often used as part of a fixed monitoring or measurement system, while a portable dew point meter can be moved between different measurement locations.

Fixed sensors are useful when continuous monitoring is required. Portable instruments are valuable for inspections, troubleshooting, commissioning, and spot checks.

The choice depends on whether the application requires continuous measurement, periodic verification, or both.

How ShawMeter Supports Moisture Measurement

ShawMeter provides dew point and moisture measurement solutions for industrial applications. Its equipment can support users who need reliable information about moisture levels in gases and compressed-air systems.

When selecting a ShawMeter solution, users should consider the application requirements, including measurement range, accuracy, pressure, temperature, response time, and installation method.

Selecting the right technology for the specific process is essential for obtaining meaningful measurements.

Using Dew Point Data for Preventive Maintenance

Dew point measurements can be valuable for preventive maintenance programs. By recording readings over time, operators may identify unusual changes that could indicate a developing problem.

For example, a gradual increase in moisture readings may encourage technicians to inspect drying equipment or investigate possible changes in the system.

Historical measurement data can therefore support better maintenance planning and process control.

Final Thoughts

A dewpoint sensor is an important tool for monitoring moisture conditions in compressed air, industrial gases, and other applications where humidity control matters. Reliable measurements can help businesses understand system performance, identify changes, and maintain appropriate operating conditions.

ShawMeter offers professional moisture measurement solutions for industrial environments. By considering accuracy, measurement range, response time, pressure, temperature, installation requirements, and calibration needs, businesses can select a suitable sensor for their application and build a more effective moisture monitoring strategy.
