2-5 Pin Watertight Connectors: Reliable Subsea Connectivity by HYSF Subsea

2-5 Pin Watertight Connectors are compact connection components designed to provide secure electrical or signal connections while offering protection against water intrusion.

Reliable electrical connections are essential for underwater equipment operating in challenging marine environments. Water exposure, pressure, corrosion, and mechanical stress can create significant challenges for conventional connectors. Watertight connectors are designed to provide secure electrical connections while helping protect sensitive connection points from moisture and environmental exposure.

HYSF Subsea provides specialized subsea connectivity solutions designed for demanding underwater applications. Its connector solutions are suitable for systems where dependable electrical and signal connections are essential.

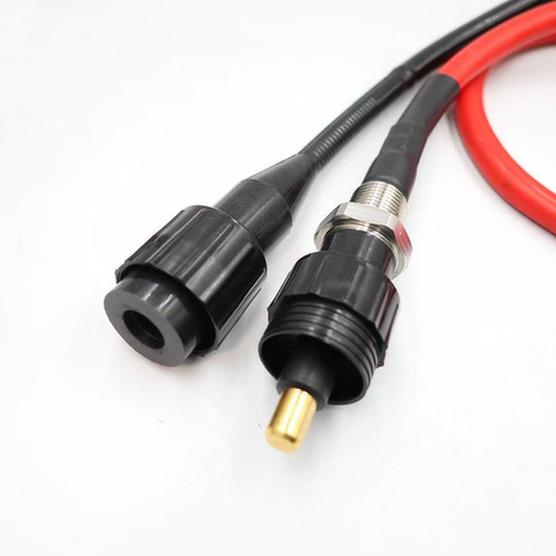

What Are 2-5 Pin Watertight Connectors?

2-5 Pin Watertight Connectors are compact connection components designed to provide secure electrical or signal connections while offering protection against water intrusion.

The number of pins determines how many individual electrical contacts are available within the connector. Different configurations can therefore be selected according to the electrical, signal, or communication requirements of a specific underwater system.

These connectors can be useful in applications where equipment needs reliable connections without compromising protection against the surrounding environment.

Why Watertight Connectors Matter Underwater

Subsea equipment operates in conditions where exposure to water is unavoidable. If moisture reaches electrical contacts, it can potentially contribute to corrosion, signal problems, short circuits, or equipment failure.

A properly designed watertight connector helps create a protected connection between components. This can improve reliability and reduce the risks associated with underwater deployment.

For equipment that is difficult to access after installation, dependable connectors are particularly important.

Understanding Pin Configurations

Different underwater systems require different numbers of electrical contacts. Two-pin configurations may be suitable for relatively simple power or signal requirements, while connectors with additional pins can support more complex connections.

2-Pin Connectors

Two-pin designs can be used for straightforward electrical connections where a limited number of contacts are required.

3-Pin Connectors

Three-pin configurations can provide an additional contact for systems requiring more functionality or signal arrangements.

4-Pin Connectors

Four-pin connectors can support applications involving multiple electrical or signal connections within a compact interface.

5-Pin Connectors

Five-pin designs provide additional contacts for systems requiring more complex connectivity while maintaining a compact form factor.

Key Features of Watertight Connectors

A reliable subsea connector should be designed around the conditions in which it will operate.

Water Protection

Sealing and protective construction help prevent moisture from reaching electrical contacts.

Durable Construction

Underwater connectors may experience pressure, movement, handling, and mechanical stress during deployment and recovery.

Secure Connection

A dependable connection mechanism helps prevent accidental separation during operation.

Compact Design

Compact connectors can be useful when equipment has limited installation space.

Reliable Signal Transfer

Properly engineered electrical contacts can help support stable power and signal transmission.

Applications of 2-5 Pin Watertight Connectors

2-5 Pin Watertight Connectors can be used across a wide range of underwater and marine technologies.

Underwater Sensors

Sensors used for environmental monitoring and measurement often require protected electrical connections.

ROV Systems

Remotely operated vehicles rely on multiple electrical and signal connections for onboard equipment and instruments.

Underwater Cameras

Marine imaging equipment requires reliable connections for power and data-related functions.

Oceanographic Equipment

Research instruments deployed underwater can benefit from protected connector systems designed for marine conditions.

Offshore Equipment

Subsea infrastructure and offshore inspection systems may require durable connectors that can operate reliably in demanding environments.

HYSF Subsea Connectivity Solutions

HYSF Subsea specializes in solutions for underwater connectivity and marine applications. Its approach focuses on providing products designed around the practical requirements of subsea equipment.

Choosing specialized connectors can help organizations improve equipment integration and reduce potential problems associated with using unsuitable components in underwater environments.

Choosing the Right Pin Configuration

The appropriate connector configuration depends on the specific requirements of the equipment. Before selecting a connector, users should consider the number of electrical contacts required, operating environment, installation space, cable specifications, and expected deployment conditions.

It is also important to consider compatibility with existing equipment and the required protection level.

Selecting the correct configuration from the beginning can simplify installation and support more reliable system operation.

Installation and Maintenance

Correct installation plays an important role in connector performance. Connection points should be clean and properly aligned before assembly.

Users should also follow the manufacturer's recommendations for installation, sealing, handling, and maintenance. Regular inspection can help identify signs of wear, contamination, or physical damage before deployment.

Proper maintenance can contribute to longer service life and dependable performance.

Why Specialized Connectors Are Important

Standard electrical connectors are not necessarily designed for underwater use. Marine applications require additional protection against moisture and environmental conditions.

Purpose-built watertight connectors are developed with these challenges in mind. They can provide a practical solution for engineers and organizations working with underwater systems.

Conclusion

2-5 Pin Watertight Connectors provide secure and protected connection options for a wide range of subsea and marine applications. Their different pin configurations allow users to select a suitable connection according to the electrical and signal requirements of their equipment.

From ROVs and underwater cameras to sensors, oceanographic instruments, and offshore systems, reliable connectors can play an important role in maintaining equipment performance.

With specialized connectivity solutions from HYSF Subsea, organizations can develop dependable underwater systems designed to operate in demanding marine environments.
